425H Portable Air Compressor

The Sullair 425H rotary screw portable air compressor delivers 425 cfm at 150 psig or 12 m3/min at 10.3 bar.

The unit is designed for reliability and total accessibility featuring large doors for easy access to maintenance parts. Powered by a Cummins engine, the machine is available in either skid mounted or single axle 2-wheel versions. The enclosure is made of power coated Galvannealed sheet metal to ensure long life with high corrosion resistance.

Other features include dual pressue capability, remote fuel fill, electronic control panel with IOT capability and Australian designed and built running gear fully compliant with. latest RVSA guidelines.

sullair425h 3253v2(front3 4) cutout
1006 1028wrd000 page 15 image 0001 1
1006 1028wrd000 page 15 image 0002 1
374 425 features 01

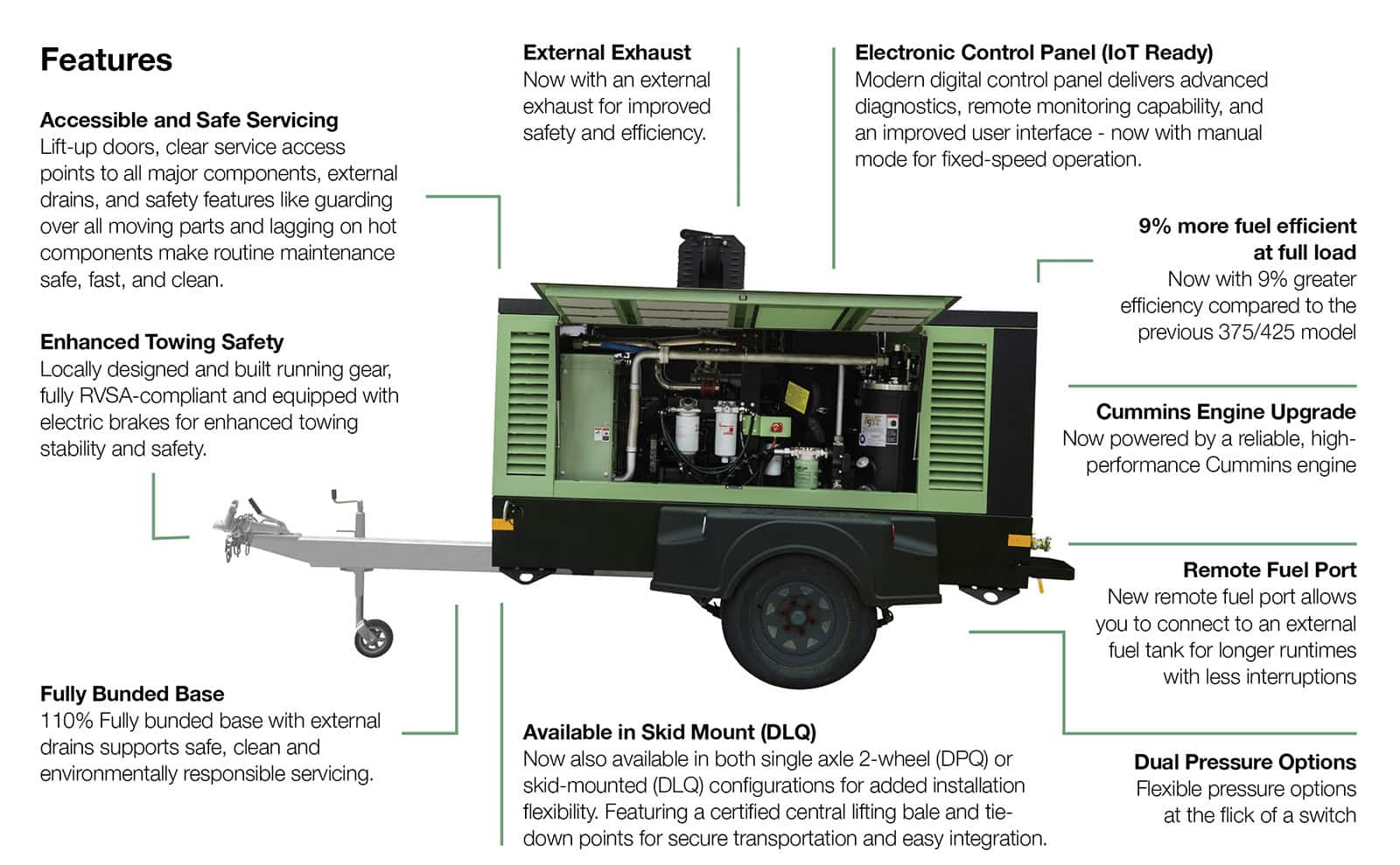

FEATURES SUMMARY

  • Rotary screw compressor
  • Adjustable height hitch
  • Aftercooler
  • Battery disconnect switch
  • Powder coated Galveannealed sheet metal canopy
  • Three stage air filter
  • AWF compressor fluid
  • Australian designed running gear
  • Rear bumper
  • Optional upgrades
  • Fully bunded frame
  • Dual Pressure operation with the flick of a switch
  • Emergency stop
  • External muffler for cooler operation of machine
  • Fuel water seperator
  • IOT ready electronic control panel
  • Electric brakes complete with trailer breakaway system for enhanced safety

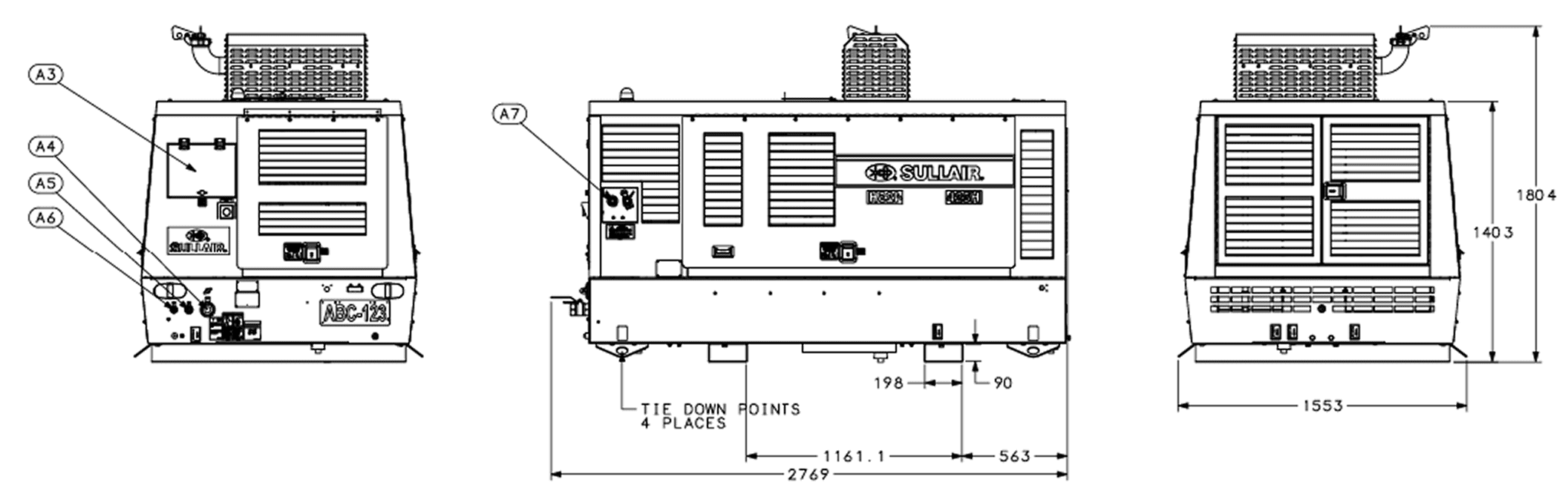

Model: 425HA DLQ – Skid version

Max Pressure: 150 (PSI) 10.3 (BAR)

Capacity: 425 (CFM) / 12 (m3/Min)

Dimension L x W x H (mm): 2769 X 1553 X 1804

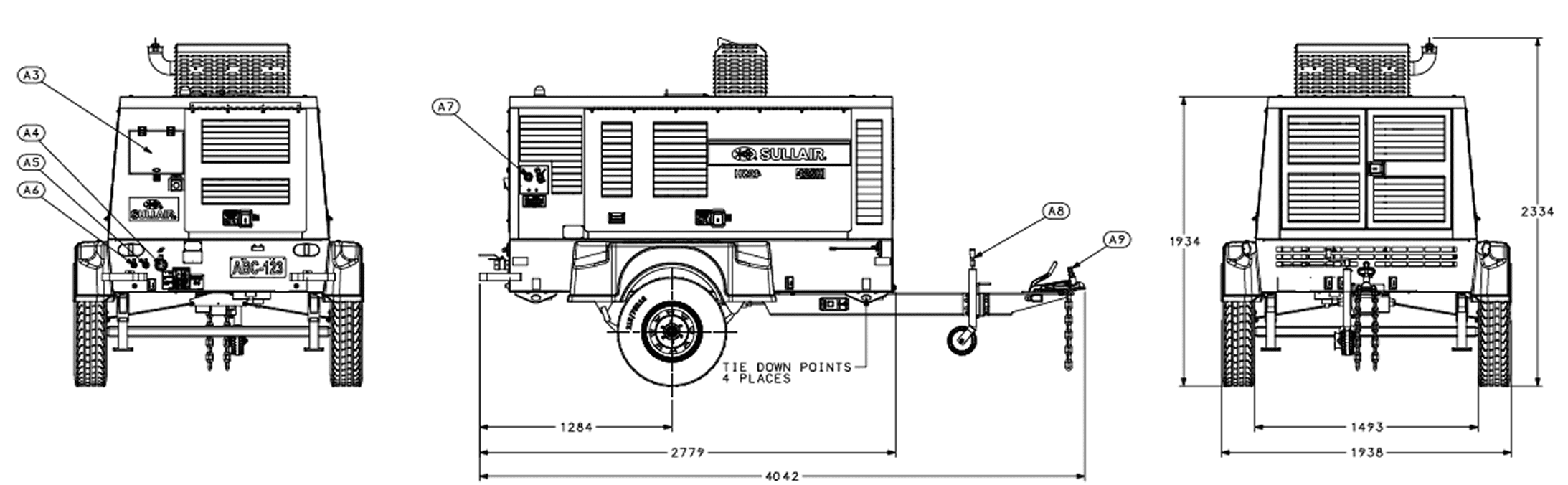

Model: 425HA DPQ – Single axle wheeled version

Max Pressure: 150 (PSI) 10.3 (BAR)

Capacity: 425 (CFM) / 12 (m3/Min)

Dimension L x W x H (mm): 4042 X 1938 X 2334

  • 4.5kg or 9kg fire extinguisher with bracket
  • Wheel chocks and bracket
  • Wheel nut indicators
  • Certified safety valves
  • Customer specific requirements on a case-by-case basis
  • Bluetooth wireless electric break kit
  • Spare wheel with bracket
Features

FEATURES SUMMARY

  • Rotary screw compressor
  • Adjustable height hitch
  • Aftercooler
  • Battery disconnect switch
  • Powder coated Galveannealed sheet metal canopy
  • Three stage air filter
  • AWF compressor fluid
  • Australian designed running gear
  • Rear bumper
  • Optional upgrades
  • Fully bunded frame
  • Dual Pressure operation with the flick of a switch
  • Emergency stop
  • External muffler for cooler operation of machine
  • Fuel water seperator
  • IOT ready electronic control panel
  • Electric brakes complete with trailer breakaway system for enhanced safety
Modules & Specifications

Model: 425HA DLQ – Skid version

Max Pressure: 150 (PSI) 10.3 (BAR)

Capacity: 425 (CFM) / 12 (m3/Min)

Dimension L x W x H (mm): 2769 X 1553 X 1804



Model: 425HA DPQ – Single axle wheeled version

Max Pressure: 150 (PSI) 10.3 (BAR)

Capacity: 425 (CFM) / 12 (m3/Min)

Dimension L x W x H (mm): 4042 X 1938 X 2334

Options
  • 4.5kg or 9kg fire extinguisher with bracket
  • Wheel chocks and bracket
  • Wheel nut indicators
  • Certified safety valves
  • Customer specific requirements on a case-by-case basis
  • Bluetooth wireless electric break kit
  • Spare wheel with bracket
