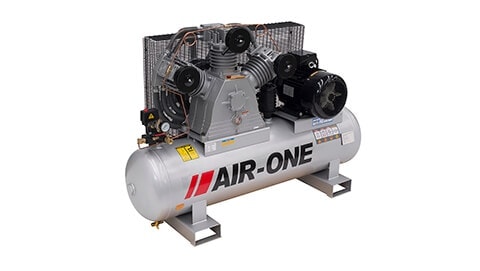

Air-One™ R10 Reciprocating Compressor
The AirOne compressors are made from high quality materials and feature MEPS2-compliant TEFC IP55 drive motors.
These compressors are slow running and robust in design to ensure a long service life and reduced service requirements. Benefiting from a small footprint, the AirOne range has been designed for simple installation, and can be specified with a choice of specifically sized receivers for optimum operation.
POPULAR USAGE
Ideal for paint and panel, automotive, trade, industrial, plastics, manufacturing, food and beverage industries, these piston compressors are ideal solution for small compressed air applications.
MAIN BENEFIT
Small footprint. Easy to install.
Feature Summary
- Available from 4 to 15kW (16.5 cfm – 73.2 cfm)
- High Quality
- Slow running cast iron compressor pumps
- Proven longevity
- Reduced service costs and component count
- Backed with local service and genuine spare parts
- Low running costs
- Heavy duty design
- Easy & Economic installation
Model: R10
Motor: (5.5 kW / 7.5 Hp / 1470 RPM / F class)
Max Pressure: 850 kPa
Displacement: (51.5 cfm / 1.46 m3/min / 24.3 l/s)
Free Air Delivery ACACA 2000: (24.3 cfm / 1.14 m3/min / 18.9 l/s)
Dimensions LxWxH: 1836 x 600 x 1175 mm
Receiver Capacity: 305 L
- Automatic Drain Valve
- Certified Safety Valve
- Features
-
Feature Summary
- Available from 4 to 15kW (16.5 cfm – 73.2 cfm)
- High Quality
- Slow running cast iron compressor pumps
- Proven longevity
- Reduced service costs and component count
- Backed with local service and genuine spare parts
- Low running costs
- Heavy duty design
- Easy & Economic installation
- Modules & Specifications
-
Model: R10
Motor: (5.5 kW / 7.5 Hp / 1470 RPM / F class)
Max Pressure: 850 kPa
Displacement: (51.5 cfm / 1.46 m3/min / 24.3 l/s)
Free Air Delivery ACACA 2000: (24.3 cfm / 1.14 m3/min / 18.9 l/s)
Dimensions LxWxH: 1836 x 600 x 1175 mm
Receiver Capacity: 305 L
- Options
-
- Automatic Drain Valve
- Certified Safety Valve
