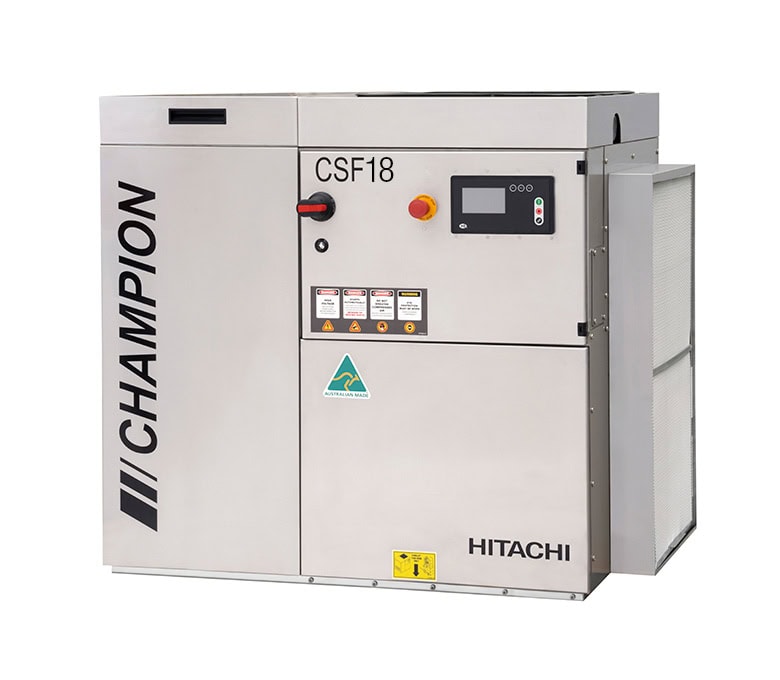

CSF 18 Rotary Screw Compressor
Inside and out, the CSF delivers longer life and lower running costs in a powerful performing and heavy duty design
Created and assembled locally to withstand harsh Australian conditions, this product is suited to ambient temperatures of up to 50°C, can handle humidity and dust, and includes dirty environment inlet filtration packs as standard.
Benefit from a heavy duty machine that delivers a lifetime of tough performance. The quiet and thoughtful design of the CSF machine saves both space and money.
The Champion CSF series is a market proven industrial compressor being relaunched due to market demands.
POPULAR USAGE
Mining, General engineering, Manufacturing, Food and Beverage.
MAIN BENEFIT
Electronic controller, Energy efficient design, Customisable.

Feature Summary
- Small footprint
- Intelligent Champion Electronic Controller
- Designed to run smoothly even at 50°C
- Outdoor operation with IP65 electrical panel
- Range of options available
Model: CSF 18
Max Pressure: 109–145 (PSI) / 7.5–13 (BAR)
Capacity: 77–108 (CFM) / 2.2–3.1 (M3/Min)
Motor Rating: 18.5 kW / 25 HP
Noise Level DB(A): 70
Dimension L x W x H (mm): 1316 x 780 x 1105
Approx Weight Kg: 540
Air Outlet Discharge Size: 1″ BSPF
- Features
-
Feature Summary
- Small footprint
- Intelligent Champion Electronic Controller
- Designed to run smoothly even at 50°C
- Outdoor operation with IP65 electrical panel
- Range of options available
- Modules & Specifications
-
Model: CSF 18
Max Pressure: 109–145 (PSI) / 7.5–13 (BAR)
Capacity: 77–108 (CFM) / 2.2–3.1 (M3/Min)
Motor Rating: 18.5 kW / 25 HP
Noise Level DB(A): 70
Dimension L x W x H (mm): 1316 x 780 x 1105
Approx Weight Kg: 540
Air Outlet Discharge Size: 1″ BSPF
