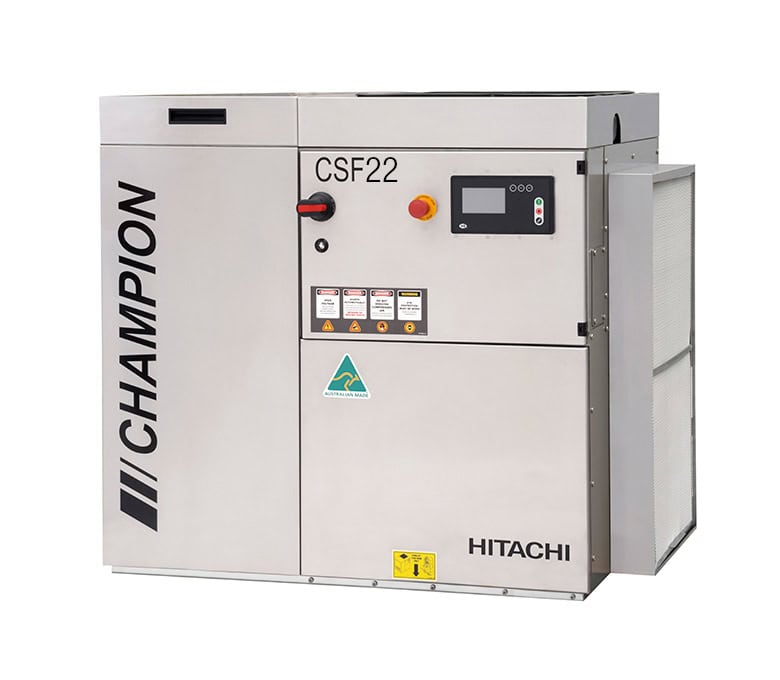

CSF 22 Rotary Screw Compressor
Inside and out, the CSF delivers longer life and lower running costs in a powerful performing and heavy duty design
Created and assembled locally to withstand harsh Australian conditions, this product is suited to ambient temperatures of up to 50°C, can handle humidity and dust, and includes dirty environment inlet filtration packs as standard.
Benefit from a heavy duty machine that delivers a lifetime of tough performance. The quiet and thoughtful design of the CSF machine saves both space and money.
The Champion CSF series is a market proven industrial compressor being relaunched due to market demands.
Gain real-time visibility into your compressor’s data, performance, and service schedules – available with AirLinx™.
POPULAR USAGE
Mining, General engineering, Manufacturing, Food and Beverage.
MAIN BENEFIT
Electronic controller, Energy efficient design, Customisable.
Feature Summary
- Small footprint
- Intelligent Champion Electronic Controller
- Designed to run smoothly even at 50°C
- Outdoor operation with IP65 electrical panel
- Range of options available
- Optional add-on: 24/7 remote compressor visibility and performance options by Airlinx™.
Model: CSF 22
Max Pressure: 116–189 (PSI) / 7.5–13 (BAR)
Capacity: 91–130 (CFM) / 2.6–3.7 (M3/Min)
Motor Rating: 22 kW / 30 HP
Noise Level DB(A): 71
Dimension L x W x H (mm): 1316 x 780 x 1105
Approx Weight Kg: 540
Air Outlet Discharge Size: 1″ BSPF
- Sequencing Kits
- Dirty Environment Packs
- Outdoor Environment Packs
- Stainless Steel panel
- Food Grade Lubricant
- Certified Safety Valves
- Full monitoring Option
- Remote Monitoring Option
- Subscription with AirLinx: Real-time visibility into data, performance, and service schedules.
- Features
-
Feature Summary
- Small footprint
- Intelligent Champion Electronic Controller
- Designed to run smoothly even at 50°C
- Outdoor operation with IP65 electrical panel
- Range of options available
- Optional add-on: 24/7 remote compressor visibility and performance options by Airlinx™.
- Modules & Specifications
-
Model: CSF 22
Max Pressure: 116–189 (PSI) / 7.5–13 (BAR)
Capacity: 91–130 (CFM) / 2.6–3.7 (M3/Min)
Motor Rating: 22 kW / 30 HP
Noise Level DB(A): 71
Dimension L x W x H (mm): 1316 x 780 x 1105
Approx Weight Kg: 540
Air Outlet Discharge Size: 1″ BSPF
- Options
-
- Sequencing Kits
- Dirty Environment Packs
- Outdoor Environment Packs
- Stainless Steel panel
- Food Grade Lubricant
- Certified Safety Valves
- Full monitoring Option
- Remote Monitoring Option
- Subscription with AirLinx: Real-time visibility into data, performance, and service schedules.
