1050 Portable Air Compressor

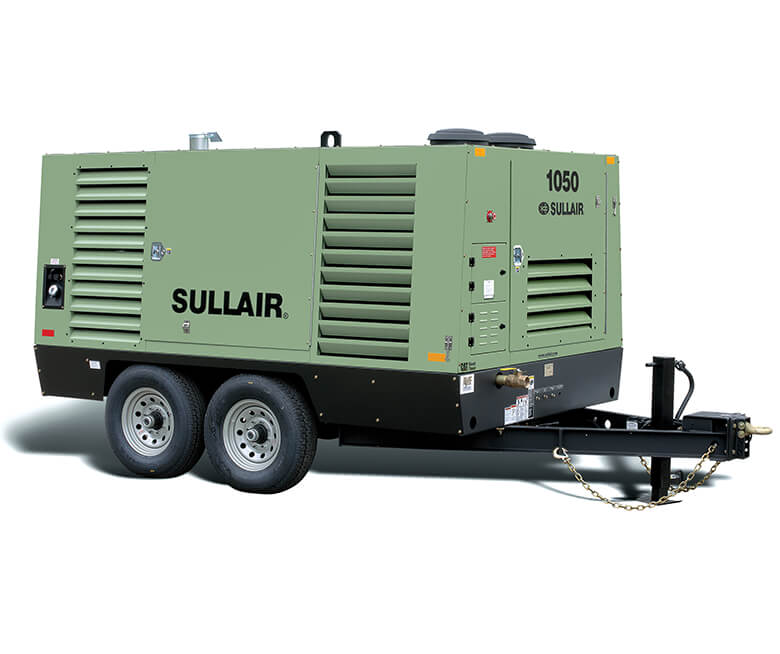

The Sullair 10500 rotary screw portable air compressor delivers 1050 cfm at 100 psig or 29.7 m3/min at 6.9 bar. The unit is designed for reliability and total accessibility.
Powered by a C9 Caterpillar engine. Mounting options are tandem axle or steerable wagon wheel. Enclosure is made of durable powder coated Galvanneal sheet metal. Other features include leaf spring suspension, wheel bearing grease fittings, and a lockable instrument panel. The compressors features a pneumatic inlet valve and 0 to 100% capacity control.
POPULAR USAGE
Hire and Rental, blasting and coating, Construction, demolition.
MAIN BENEFIT
Lockable service doors, Two stage air filtration with safety element, Wagon wheel, Electric Brakes.
Feature Summary
- Rotary screw compressor
- Pneumatic inlet valve
- 0 to 100% capacity control
- Protective shutdown switches
- Galvanneal sheet metal
- Two-Stage air filters with safety element
- Lockable service doors
- Swing-Down cooler
- AWF™ Compressor Fluid
- Complete fluid containment
- Tail lights
- Three mounting options
- Less running gear
- Wagon wheel
- Mechanical parking brake
- Tandem axle
- Electric brakes
- E-Z lube axle
Model: 1050
Max Pressure: 100 (PSI) / 6.9 (BAR)
Capacity: 1050 (CFM) / 29.7 (m3/Min)
Motor Rating: 216 kW / 290 HP
Dimension L x W x H (mm): 5182 x 2210 x 2108
Approx Weight Kg: 4559 (wet)
Tyre Size ST 235 / 80R 16
- Special colour paint
- Aftercooler
- Filtration for instrument quality air
- Less running gear option
- Features
-
Feature Summary
- Rotary screw compressor
- Pneumatic inlet valve
- 0 to 100% capacity control
- Protective shutdown switches
- Galvanneal sheet metal
- Two-Stage air filters with safety element
- Lockable service doors
- Swing-Down cooler
- AWF™ Compressor Fluid
- Complete fluid containment
- Tail lights
- Three mounting options
- Less running gear
- Wagon wheel
- Mechanical parking brake
- Tandem axle
- Electric brakes
- E-Z lube axle
- Modules & Specifications
-
Model: 1050
Max Pressure: 100 (PSI) / 6.9 (BAR)
Capacity: 1050 (CFM) / 29.7 (m3/Min)
Motor Rating: 216 kW / 290 HP
Dimension L x W x H (mm): 5182 x 2210 x 2108
Approx Weight Kg: 4559 (wet)
Tyre Size ST 235 / 80R 16
- Options
-
- Special colour paint
- Aftercooler
- Filtration for instrument quality air
- Less running gear option
